Building Integrated Photovoltaics (BIPV)

Building Integrated Photovoltaics are solar panels that are integrated into the structure of buildings, blending seamlessly with the architecture. Unlike traditional photovoltaic (PV) systems that are installed as separate elements, BIPV replaces conventional building materials like glass, tiles, or facades. This integration allows buildings to produce their own energy, reducing reliance on external power sources while enhancing the structure's aesthetic and environmental profile.

BIPV systems are not only an energy solution but also offer weather protection, thermal insulation, noise reduction, and increased property value. These systems provide long-term financial savings, energy independence, and contribute to greener building designs.

Applications of BIPV

BIPV systems offer versatile applications across different parts of a building’s exterior. They can be used to enhance both the design and functionality of a building.

1. Facades: BIPV facades are one of the most popular applications, as solar panels can be incorporated into glass windows or spandrel panels. These systems are often used on vertical surfaces, where the overall size of the facade compensates for reduced solar exposure.

2. Awnings & Canopies: BIPV panels can be integrated into awnings, providing shade and reducing solar heat gain while generating power. Semi-transparent modules allow filtered sunlight to pass through, creating comfortable, shaded areas for people to gather.

3. Roofing: BIPV systems are highly effective on roofs, where they replace traditional shingles, tiles, or metal roofing. These installations generate a large portion of the building’s electricity and protect the structure from the elements.

4. Skylights: BIPV skylights are a unique application, where semi-transparent panels allow natural light to enter while simultaneously producing electricity. These skylights can serve as both an architectural feature and a power-generating surface.

Design Considerations for BIPV

Designing a BIPV system involves multiple considerations to ensure both functionality and aesthetics. Below are some key factors to keep in mind:

1. Energy-efficient Building design: Before installing a BIPV system, it's important to reduce overall energy consumption in the building. This includes optimizing the building envelope for insulation, utilizing passive solar design, and considering natural ventilation and daylighting.

2. System Type: BIPV systems can be grid-connected, grid-connected with battery backup, or stand-alone. The choice depends on the building’s energy needs, budget, and location. Grid-tied systems allow for excess energy to be fed back into the utility grid, while stand-alone systems may require batteries for energy storage.

3. Orientation and Tilt: The orientation of the solar panels significantly affects their energy output. South-facing panels typically generate the most power, but east or west-facing panels can also be effective depending on the time of day energy is most needed. Arrays tilted towards the sun can produce 50% to 70% more electricity than vertical installations.

4. Ventilation: Ensuring proper ventilation behind BIPV modules is crucial to maintaining their efficiency. Elevated operating temperatures can reduce the performance of photovoltaic cells, so designing for adequate airflow is essential.

5. Climate Considerations: The local climate will impact the performance of BIPV systems. Cold, clear days increase power production, while hot, overcast days reduce output. Reflective surfaces, snow loads, wind conditions, and dust accumulation are all factors that should be considered during the design phase.

   Notable BIPV Installations

   BIPV systems have been successfully integrated into several iconic buildings worldwide, demonstrating their potential for both design and energy production.

1. SwissTech Convention Center, Switzerland

The southwest facade of this building features 280 square meters of dye-sensitized solar cells (DSSC), generating 3 kWp of electricity. The semi-transparent panels filter sunlight entering the lobby, creating a visually striking and energy-efficient space.

Rama, via Wikimedia Commons

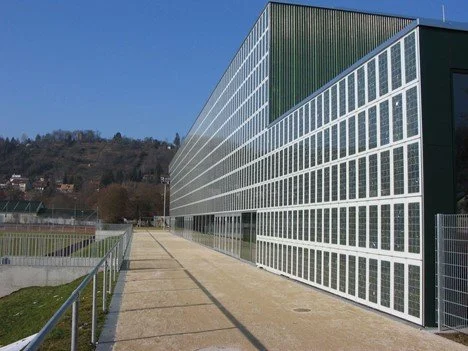

2.The Paul Horn Arena in Tübingen, Germany

The Paul Horn Arena in Tübingen, Germany, features photovoltaic modules that are both visually appealing and efficient at generating power. The design highlights the emerald-green, "fractured" look of multi-crystalline silicon cells set within large white rectangular frames. Spanning 530 m² with uninterrupted sunlight throughout the day, the system produces 43.7 kWp of electricity.

By Björn Appel from Wikimedia.

Benefits of BIPV

1. Energy Independence

BIPV systems reduce or eliminate a building's reliance on external electricity, leading to energy independence and long-term savings on utility bills.

2. Environmental Impact

BIPV systems significantly reduce a building’s carbon footprint by generating clean, renewable energy on-site. They help lower greenhouse gas emissions and contribute to sustainable building practices.

3. Aesthetic Appeal

Unlike traditional solar panels, BIPV systems blend seamlessly into building designs. Architects can incorporate them into walls, roofs, and windows without compromising the aesthetic integrity of the structure.

4. Financial Savings

While BIPV systems may require a higher initial investment, they offer long-term financial benefits by reducing energy costs and potentially earning income through energy credits. Over time, these systems pay for themselves and increase property value.

The Future of BIPV

As technology advances, the costs of BIPV systems are expected to decrease, making them more accessible for a wider range of buildings. The increasing focus on sustainability in architecture, coupled with governmental incentives for renewable energy, points to a bright future for BIPV. This technology has the potential to revolutionize how we design and power our buildings, contributing to a greener and more energy-efficient world.
